Fiberglass tubes are widely used in various industries due to their lightweight, durability, and resistance to corrosion. One common question that arises is whether fiberglass tubes are flexible or rigid. This article will explore the flexibility of fiberglass tubes, their applications, and the factors that influence their flexibility.
Fiberglass tubes are made from a composite material consisting of glass fibers embedded in a resin matrix, usually epoxy or polyester. This combination of materials gives fiberglass tubes their unique properties, such as high strength-to-weight ratio, corrosion resistance, and electrical insulation.
There are several types of fiberglass tubes, includingpultruded tubes,filament-wound tubes, andwrapped tubes. Pultruded tubes are made by pulling continuous strands of glass fibers through a resin bath and then through a heated die to cure the resin. These tubes are known for their uniform cross-section and high strength. Filament-wound tubes are made by winding continuous strands of glass fibers around a mandrel in a specific pattern and then curing the resin. These tubes are often used in applications requiring high strength in specific directions. Wrapped tubes are made by wrapping layers of glass fibers around a mandrel and then curing the resin. These tubes are typically used in applications where a lower cost is more important than high strength.

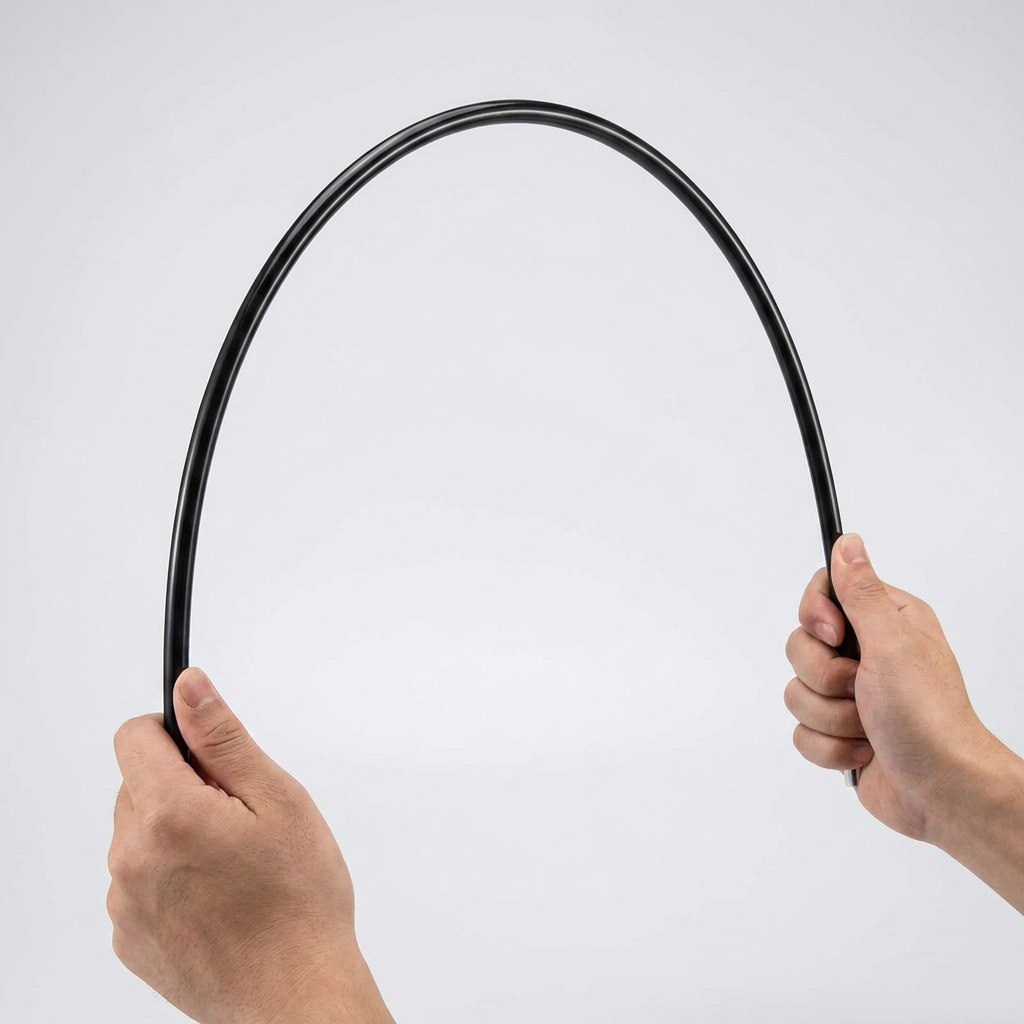

The flexibility of fiberglass tubes depends on several factors, including the type of fiberglass used, the resin matrix, the manufacturing process, and the specific application requirements. In general, fiberglass tubes are considered to be relatively rigid compared to other materials, such as rubber or plastic. However, they can be made more flexible by adjusting the manufacturing process or using different materials.
The flexibility of fiberglass tubes is influenced by several factors, including the type of glass fibers used, the resin matrix, the manufacturing process, and the specific application requirements.
There are several types of glass fibers used in the production of fiberglass tubes, each with its own unique properties. The most common types are E-glass, S-glass, and C-glass.
E-glass is the most widely used type of glass fiber due to its good balance of strength, flexibility, and cost. E-glass fibers have a Young’s modulus of approximately 70 GPa, which is a measure of their stiffness. This relatively low stiffness value allows E-glass fibers to bend and flex without breaking, making them suitable for applications requiring some degree of flexibility.
S-glass is a high-performance glass fiber with superior strength and flexibility compared to E-glass. It has a higher tensile strength and a lower Young’s modulus, which means it can withstand greater forces without breaking. This makes S-glass an ideal choice for applications where high strength and flexibility are critical, such as in aerospace and military applications.
C-glass is a type of glass fiber specifically designed for chemical resistance. It has excellent resistance to a wide range of chemicals, including acids, alkalis, and solvents. While C-glass fibers have good flexibility, their primary advantage is their chemical resistance, making them suitable for applications in harsh environments, such as in the chemical processing industry.
The resin matrix used in fiberglass tubes also plays a significant role in determining their flexibility. Epoxy and polyester are the two most common types of resin used in fiberglass tubes.
Epoxy resin is known for its excellent mechanical properties, including high strength, stiffness, and resistance to deformation. However, these properties come at the cost of flexibility. Epoxy resin has a relatively high Young’s modulus, which means it is more rigid and less flexible than other types of resin. This makes epoxy-based fiberglass tubes suitable for applications where high strength and stiffness are required, such as in structural components and load-bearing applications.
Polyester resin, on the other hand, is known for its good balance of mechanical properties and flexibility. It has a lower Young’s modulus than epoxy resin, which means it is more flexible and can bend and flex without breaking. This makes polyester-based fiberglass tubes suitable for applications where flexibility is more important than high strength, such as in automotive and marine applications.
The manufacturing process used to produce fiberglass tubes also affects their flexibility. Different processes, such as pultrusion, filament winding, and resin transfer molding, can result in different material properties and flexibility.
Pultrusion is a continuous process used to produce long lengths of fiberglass tubes with a uniform cross-section. The process involves pulling glass fibers through a resin bath and then through a heated die to cure the resin. This process results in fiberglass tubes with a consistent cross-section and material properties, making it suitable for applications requiring high strength and stiffness.
Filament winding is a process used to produce fiberglass tubes with varying cross-sections and material properties. The process involves winding glass fibers around a rotating mandrel in a specific pattern and then curing the resin. This process allows for greater control over the material properties and flexibility of the fiberglass tube, making it suitable for applications where specific performance requirements need to be met.
Resin transfer molding (RTM) is a process used to produce fiberglass tubes with complex shapes and high surface quality. The process involves injecting resin into a closed mold containing glass fibers. This process allows for greater control over the resin distribution and fiber orientation, resulting in fiberglass tubes with improved flexibility and material properties.
The specific application requirements also play a significant role in determining the flexibility of fiberglass tubes. Factors such as the operating environment, load conditions, and performance requirements need to be considered when selecting the appropriate fiberglass tube for a particular application.
For example, in applications where the fiberglass tube will be subjected to high temperatures, such as in exhaust systems, a more flexible tube may be required to accommodate the thermal expansion and contraction of the material. Similarly, in applications where the tube will be subjected to bending or flexing, such as in automotive and marine applications, a more flexible tube may be required to prevent cracking or failure.
Fiberglass tubes are used in a wide range of applications due to their unique properties, such as lightweight, durability, and resistance to corrosion. Some common applications include:
In the aerospace industry, fiberglass tubes are used in various applications, such as structural components, antenna supports, and control surfaces. The lightweight and high strength of fiberglass tubes make them an ideal choice for reducing the overall weight of aircraft and spacecraft, which can lead to improved fuel efficiency and performance.
Fiberglass tubes are widely used in the marine industry for applications such as masts, booms, and davits. The corrosion resistance of fiberglass tubes makes them an excellent choice for use in harsh marine environments, where exposure to saltwater and other corrosive elements can lead to the degradation of other materials.
In the industrial sector, fiberglass tubes are used in various applications, such as piping systems, scaffolding, and support structures. The lightweight and high strength of fiberglass tubes make them an ideal choice for reducing the overall weight of these systems, which can lead to improved efficiency and reduced costs.
Fiberglass tubes are also used in sports and recreation applications, such as tent poles, fishing rods, and archery equipment. The flexibility and lightweight of fiberglass tubes make them an ideal choice for these applications, where ease of use and portability are essential.
In conclusion, fiberglass tubes are relatively rigid compared to other materials, such as rubber or plastic. However, their flexibility can be influenced by several factors, including the type of glass fibers used, the resin matrix, the manufacturing process, and the specific application requirements. By understanding these factors, it is possible to select the appropriate fiberglass tube for a particular application, ensuring optimal performance and longevity.
